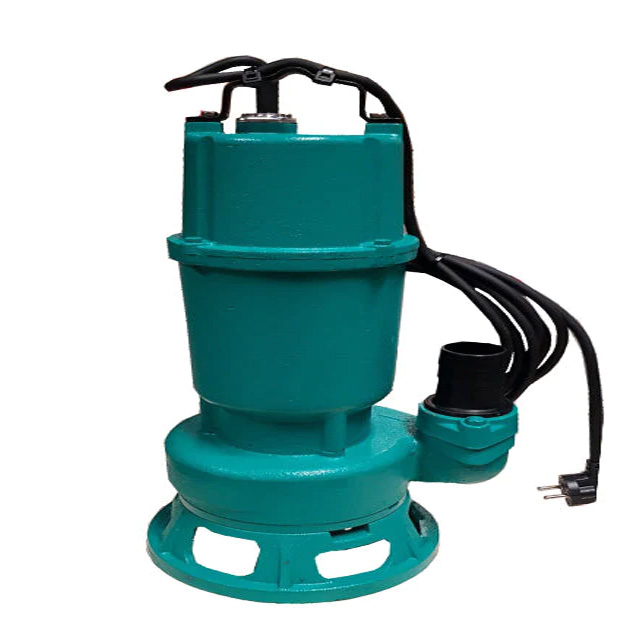

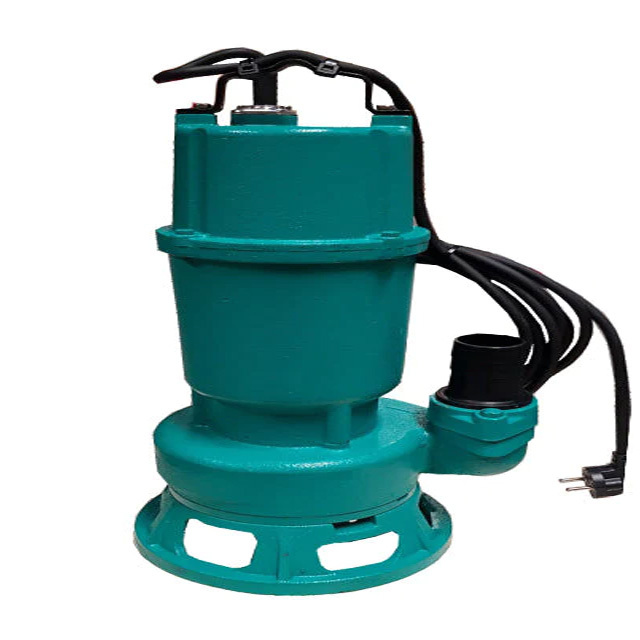

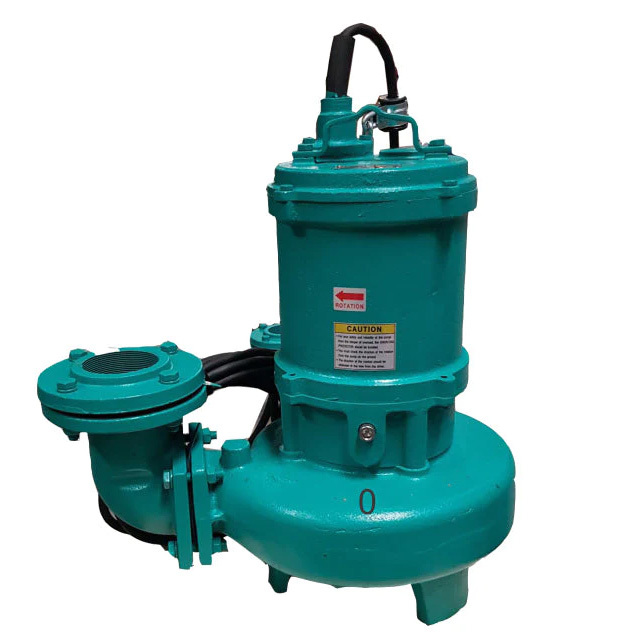

PDN Series - Submersible Sewage Pump
Manufacturer: Wilo
SKU: PDN-1404M, PDN2200T, PDN-3700T
*
¥0.64
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
We Accept

wilo logo

Submersible Sewage Pump
PDN Series

Features

  • Stainless steel shaft  as standard
  • Leak-proof by double mechanical seal and oil seal
  • Motor protection by T.P.
  • Excellent sludge transfer by non clog type
  • Safety design with built in OLP (overload protector)
  • Various materials are available

Applications

  • Drainage for waste water at factories and waste water treatment plant
  • Delivery of sewage at sewage treatment plant, human waste treatment
  • Drainage for buildings
  • Treatment utility drainage

Standard Materials

  • Casing: Gray Cast Iron
  • Impeller: Gray Cast Iron
  • Shaft: Stainless Steel

Specifications

ModelPDN-1404MPDN-2200TPDN-3700T
Power Source PH x V1 x 2203 x 2203 x 220
Output kw (HP)0.95 (1-1/4")2.2 (3)3.7 (5)
RPM345034501800
Discharge Dia. (mm)506580
Head (m)
Max1923.821.5
BEP1013.512
Flow Rate (gpm)
Max105238390
BEP67125240
Rated Current (A)88.14.1
Bearing
Upper6202ZZ6203ZZ6305ZZ
Lower6203ZZ6306ZZ6308ZZ
