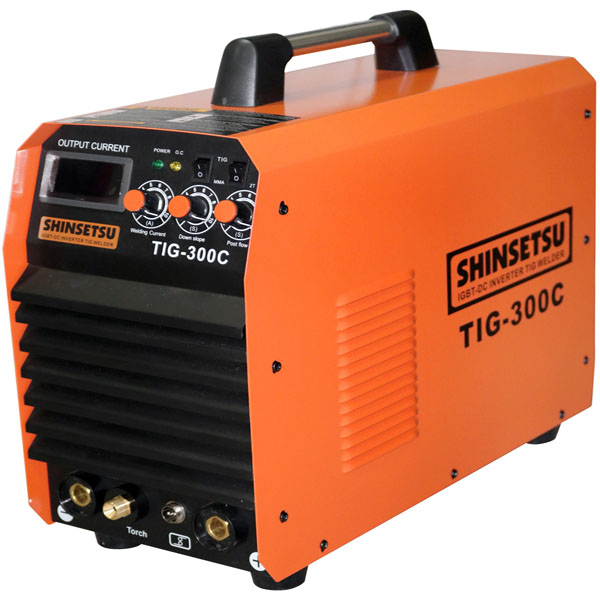

Shinsetsu Welder Inverter, TIG-300C

SPECIFICATIONS

Input Power - 220 V + 15%
Frequency - 50 - 60 Hz
Phase - 1 Ph
Rated Input Power (TIG & MMA)- 10.2 / 7.6 kVA
Rated Duty Cycle - 60%
Current Adjustment Range (TIG & MMA) - 15 ~ 275 A / 20 ~ 250 A
Output No-Load Voltage - 61 V
Down Slope Time - 0 ~ 5 s
Arc Force Range - 0 ~ 50 A
Efficiency - 85 %
Post Flow Range - 0.5 ~ 10 S
Power Factor - 0.76
Protection Grade - IP 23
Insulation Class - F
Ignite Mode - HF
Dimensions - 480 x 210 x 360 mm
Net Weight - 22 kg
Gross Weight - 23 kg

Brand: Shinsetsu
