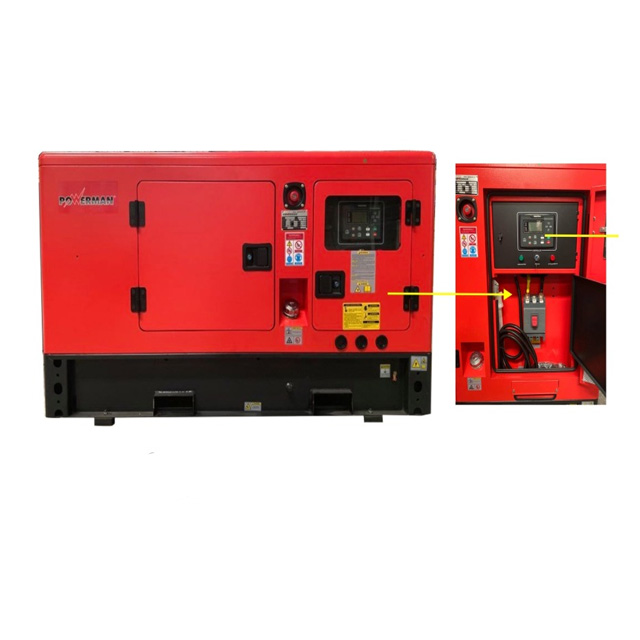

POWERMAN Diesel Silent Type Generator Set with ATS - PMC75000D-S1-ATS

Manufacturer: Powerman
Be the first to review this product
Diesel Silent Type Generator Set with ATS
SKU: PMC75000D-S1-ATS
Vendor: Premier Screwking Bolts & Nuts Corp.
*
₱1.00
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Genset Model / CodePMC75000D-S1-ATSPMC75000D-S3-ATS
Genset TypeSilent TypeSilent Type
Prime Power Output55kVa / 55kW68 kVA / 55 kW
Standby Power Output60kVa / 60 kW75 KVa / 60 kW
Consumption 100% (L/H)15.815.8
dB (A) @ 7m7070
Tank (L)200200
Engine Model4BTA3.9-G2483.9-G2
Number of Cylinders44
Cylinder ArrangementVertical In LineVertical In Line
Cycle4-Stroke4-Stroke
AspirationTurbo chargedTurbo charged
Bore x Stroke (mm x mm)102 x 120102 x 120
Displacement (Liter)3.93.9
Compression Ratio16:05:0116:05:01
Prime Power / Speed (kW/rpm)60/180060/1800
Stand by Power / Speed (kW/rpm)65/180065/1800
Speed GovernorElectricalElectrical
Cooling SystemWater Cooled
40 celcius Radiator		Water Cooled
40 celcius Radiator
Speed Stability (%)< 5%< 5%
Total lubrication system capacity (L)1111
Coolant capacity (without radiotor) (L)7.97.9
Fuel Consumption at 100% Load (g/kWh)220 (at 1800 rpm)
Starter MotorDC24VDC24V
AlternatorAC24VAC24V
Alternator ModelHK224E-1HK224E-3
Exciter TypeBrushless, Self-excitedBrushless, Self-excited
Power Factor10.8
Voltage Adjust Range<5 %
Voltage Regulation NL-FL< ±0.5 %
Insulation GradeH ClassH Class
Protection GradeIP 23IP 23
Overall Size L x W x H (m)2.28 x 1 x 1.32.28 x 1 x 1.3
Weight1120kg1080 kg

Genset Model / CodePMC125000D-S1-ATSPMC125000D-S3-ATS
Genset TypeSilent TypeSilent Type
Prime Power Output91kVa / 91kW114 kVA / 91 kW
Standby Power Output100kVa / 100 kW125 KVa / 100 kW
Consumption 100% (L/H)26.326.3
dB (A) @ 7m7070
Tank (L)300300
Engine Model6BT5.9-G16BT5.9-G1
Number of Cylinders66
Cylinder ArrangementVertical In LineVertical In Line
Cycle4-Stroke4-Stroke
AspirationTurbo chargedTurbo charged
Bore x Stroke (mm x mm)102 x 120102 x 120
Displacement (Liter)5.95.9
Compression Ratio17.5:117.5:1
Prime Power / Speed (kW/rpm)105 / 1800105 / 1800
Stand by Power / Speed (kW/rpm)115 / 1800115 / 1800
Speed GovernorMechanicalMechanical
Cooling SystemWater Cooled
40 celcius Radiator		Water Cooled
40 celcius Radiator
Speed Stability (%)< 5%< 5%
Total lubrication system capacity (L)16.416.4
Coolant capacity (without radiotor) (L)9.19.1
Fuel Consumption at 100% Load (g/kWh)221 (at 1800 rpm)
Starter MotorDC24VDC24V
AlternatorAC24VAC24V
Alternator ModelHK274C-1HK274C-3
Exciter TypeBrushless, Self-excitedBrushless, Self-excited
Power Factor10.8
Voltage Adjust Range<5 %
Voltage Regulation NL-FL< ±0.5 %
Insulation GradeH ClassH Class
Protection GradeIP 23IP 23
Overall Size L x W x H (m)2.73 x 1.06 x 1.482.73 x 1.06 x 1.48
Weight1620 kg1620 kg

Genset Model / CodePMC42000D-S1-ATS
Genset TypeSilent Type
Prime Power Output30kVa / 30 kW
Standby Power Output33kVa / 33 kW
Consumption 100% (L/H)9.5
dB (A) @ 7m71.5
Tank (L)42.3
Engine Model4B3.9-G1
Number of Cylinders4
Cylinder ArrangementIn Line
Cycle4-Stroke
AspirationTurbo
Bore x Stroke (mm x mm)102 x 120
Displacement (Liter)3.91
Compression Ratio16:05:01
Prime Power / Speed (kW/rpm)40/1800
Stand by Power / Speed (kW/rpm)44/1800
Speed Governorno
Cooling SystemWater Cooled
Speed Stability (%)< ± 0.25 %
Total lubrication system capacity (L)8
Coolant capacity (without radiotor) (L)8
Fuel Consumption at 100% Load (g/kWh)<215
Starter Motor24V
Alternator24V
Alternator ModelHKN184G
Exciter TypeBrushless, Self-excited
Power Factor1
Voltage Adjust Range±1.0 % with 4% engine governing
Voltage Regulation NL-FL<2% / <50
Insulation GradeH Class
Protection GradeIP 22
Overall Size L x W x H (m)2.23 x 1 x 1.3
Weight830 kg
