NORTON DRILL MOTORS & DRILLING RIGS CDM 353 + CDR 353

Manufacturer: Norton
Drill Motors & Drilling Rigs
SKU: CDM 353 + CDR 353
₱258,000.00
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

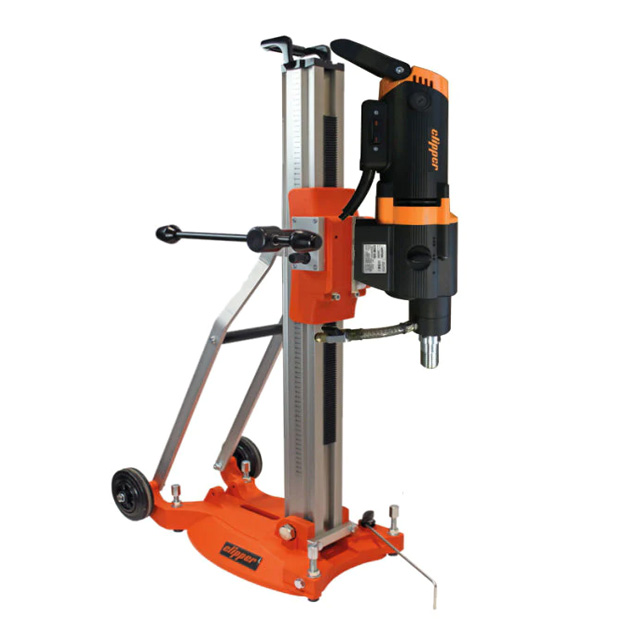

Norton CDM 353 Core Drill with Rig Stand
CDM 353 + CDR 353

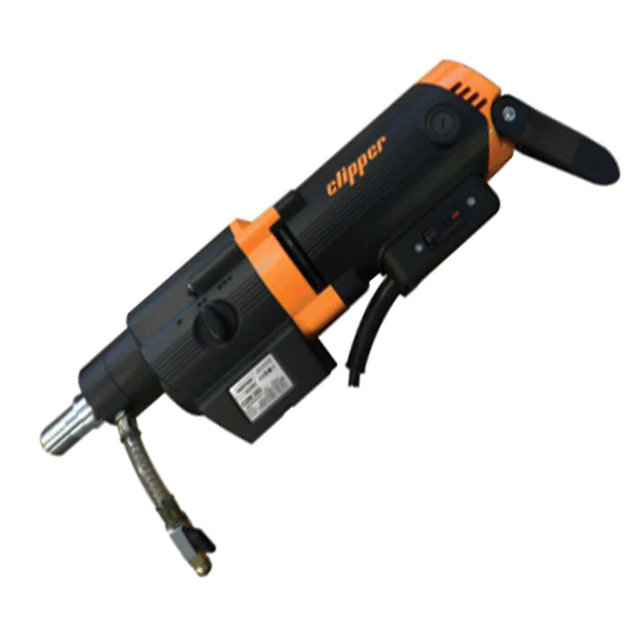

Norton CDM 353 Core Drill

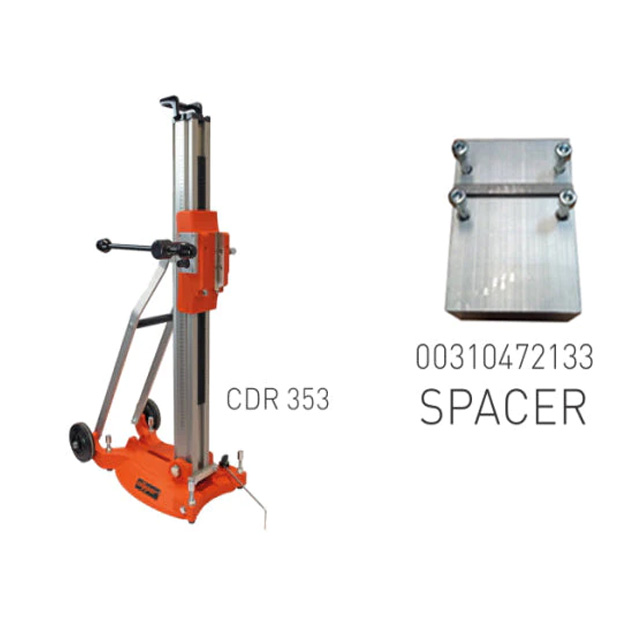

Norton CDR 353 Rig Stand
Powerful 3.3kW, 3 Speed Handheld Drill Motor
with combined spindle 1-1/4". Can be used on a drill stand.
Aluminum drill stand combining rigidity, precision and ease of use.
Accurate and smooth drilling guide of four high performance nylon rolls.
Easily accessible guiding wheels for wear compensation adjustment.

Features CDM 353Benefits CDM 353

• Powerful 3300W drilling motor
• 3-speed gearbox
• Standard motor mounting fixture
• Overload protection
• LED load indicator
• Soft-start switch
• Mechanical clutch
• Oil-bath lubricated gearbox

• Powerful and professional motor
• For a wide drilling diameter range
• Fits to most drilling rigs on the market
• For a wide drilling diameter range
• Maintenance-free, Life-Long Lubrication
• For optimum drilling in-feed and longer life.
• Limitation of starting current
• For optimal protection of motor and tools
Features CDR 353Benefits CDR 353

• Aluminum column
• Multi-purpose drive-lever
• Roll-guided carriage
• Transport Wheels
• Transport handle
• Pre-Mounted Rig
• Standard motor mounting fixture
• 4 points level adjustment

• Robust, reliable and lightweight
• High accuracy drill guiding, little maintenance.
• Quick and easy motor mounting without any additional tools
• Easy and ergonomic handling
• Can be used for levelling and locking screws.
• 2 different reports/ratio for an easy work.

Norton CDM 163 Core Drill Specifications

Model70184647810
Power3300 W
Volts230V 1Phase
Range30-350mm
RPM under load
192 / 390 / 570
ApplicationWet
Connection1-1/4"
Weight13.5 kg

Norton CDR 163 Rig Stand Specifications
Model310468581 + 310472133
Diameter Max400mm
Hub690mm
ColumnAluminum
Column Section70 x 70mm
Base
Dowel + Vacuum
Base dimension370 x 550mm
Weight23.9 kg
Bit GuideYes
Motor mounting platePlate included
CarraigeAluminum
Carriage guiding systemRolls
Carriage handleYes
Carraige travel1: 1 + 2:1
BracesYes
Tilting0-45 degrees
Spirit LevelYes
Transport WheelsYes
Height1080 mm
