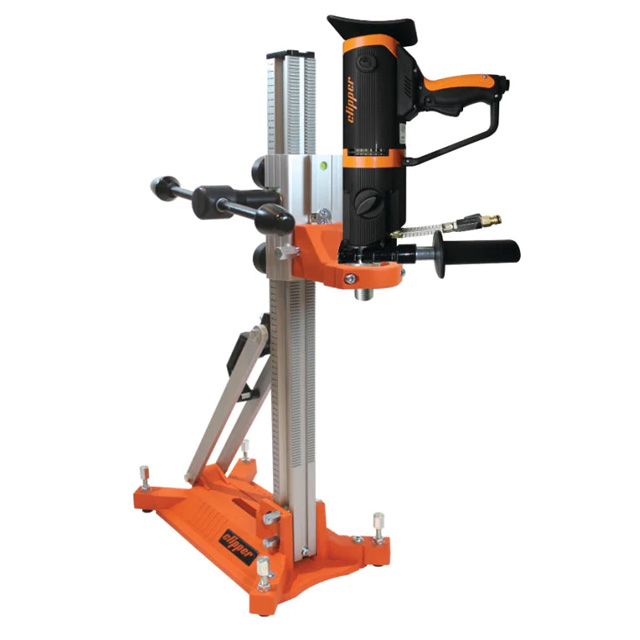

Norton CDM 163 Core Drill with Rig Stand
CDM 163 + CDR 163

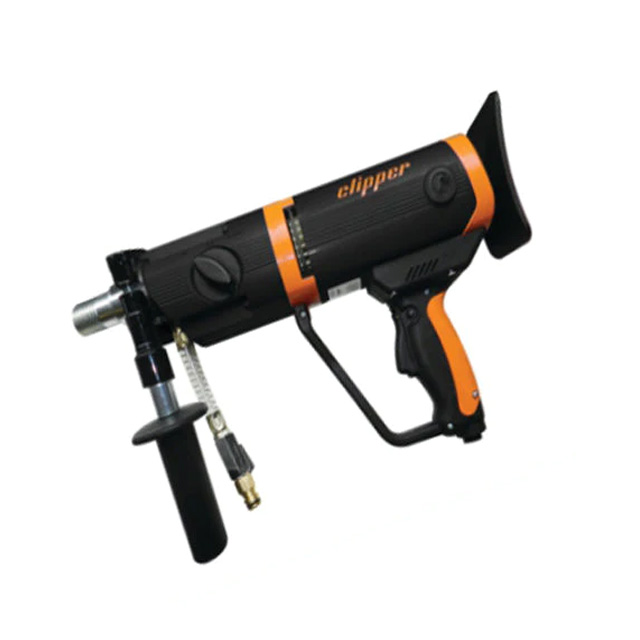

Norton CDM 163 Core Drill

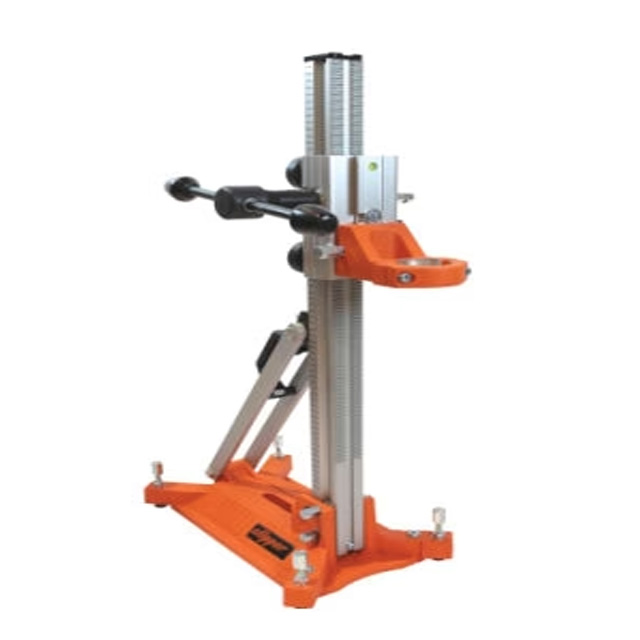

Norton CDR 163 Rig Stand
Powerful 1.8kW, 3 Speed Handheld Drill Motor
with combined spindle 1/2 + 1-1/4". Can be used on a drill stand.
Aluminum drill stand combining rigidity, precision and ease of use.
Accurate and smooth drilling guide of four high performance nylon rolls.
Easily accessible guiding wheels for wear compensation adjustment.

Features CDM 163Benefits CDM 163
• Powerful 1800W drilling motor
• Combined spindle
• Ergonomic handles.
• 60mm ring on body
• 3-speed gearbox
• Oil-bath lubricated gearbox
• Mechanical clutch
• Soft-start switch
• Overload protection
• Delivered in suit case
• For both handheld and rig-mounted drilling
• For the mounting of 1-1/4 and 1/2 core bit
• East torque-control and comfortable to use
• Can be mounted on drill rig
• For a wide drilling diameter range
• Maintenace-free, Life-Long Lubrication
• For users of safety
• Limitation of starting current and speed.
• Protection of electrical & mechanical parts for longer life
• Easy and safe transportation
Features CDR 163Benefits CDR 163
• Aluminum column
• Left and right mounting drive-lever
• Multi-purpose drive-lever
• Roll-guided carriage
• Ring mounting motor collar (60mm)
• Transport handle
• Pre-Mounted Rig
• Robust, reliable and lightweight
• Easy to use even in confined environments.
• Can be used for levelling and locking screws.
• For accurate column levelling.
• High accuracy drill guiding, little maintenance.
• Quick and easy motor mounting without any additional tools
• Easy and ergonomic handling
•Use it directly out of box

Norton CDM 163 Core Drill Specifications

Model70184647807
Power1800 W
Volts230V 1Phase
Range15-160mm
RPM under load
540 / 1200 / 2280
ApplicationWet & Dry
Connection1/2 + 1-1/4"
Weight8.1 kg

Norton CDR 163 Rig Stand Specifications
Model310468577
Diameter Max160mm
Hub600mm
ColumnAluminum
Column Section45 x 60mm
Base
Dowel + Vacuum
Base dimension280 x 460mm
Weight9.6 kg
Bit GuideNo
Motor mounting plateRing 60mm
CarraigeAluminum
Carriage guiding systemRolls
Carriage handleYes
Carraige travel1: 1
BracesYes
Tilting0-45 degrees
