HITACHI V-SERIES HOIST WITH MOTORIZED TROLLEY (5HM5)

Name: HITACHI V-SERIES HOIST WITH MOTORIZED TROLLEY (5HM5)
SKU: 5HM5
Price: 620000.00 PHP
Availability: InStock

V-Series Hoist with Motorized Trolley

SKU: 5HM5

₱620,000.00

Qty:

i h

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

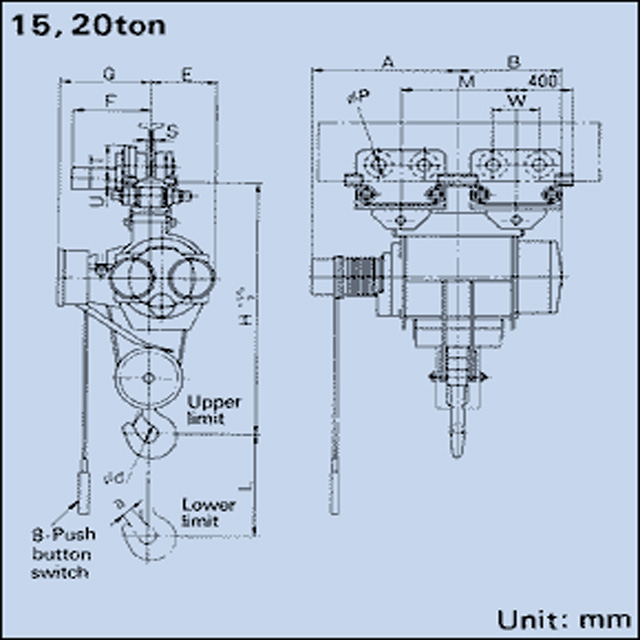

Model		15M-T₅₅	15HM-T₅₅		20M-T₅₅
Hoist type		15M₅	15HM₅		20M₅
Trolley type		10AT₆×2	10AT₆×2		10AT₆×2
Capacity(ton)		15			20
Approx. Dimensions(mm)	L	8,000	12,000		12,000
	H	1,865			2,010
	A	1,060	1,160		1,210
	B	750	850		900
	E	500			500
	G	705			705
	M	820			900
	W	327			327
	Ød	130			165
	Øp	200			200
	a	86			108
Min. curve Radius(m)		Straight			Straight
Dimensions with Respect to l-beam(mm)		S	T	U		F
450 × 175 × 11		62	280	30		524
600 × 190 × 13		77	285	25		532
Approx.weight(kg)		2,340	2,540		2,880
