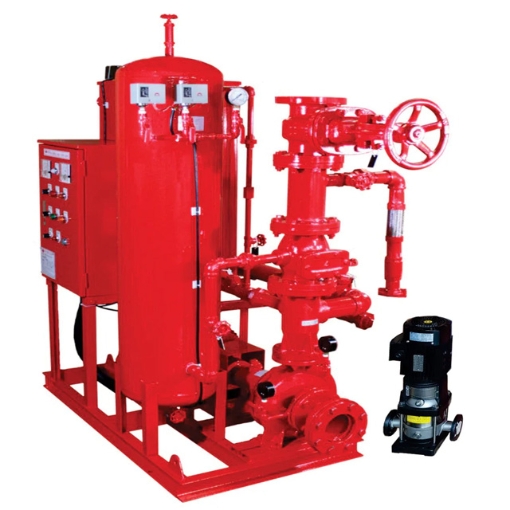

EVERGUSH FIRE FIGHTING PUMP SET FF80-XA3220-27.5

Name: EVERGUSH FIRE FIGHTING PUMP SET FF80-XA3220-27.5
SKU: FF80-XA3220-27.5
Price: 5.00 PHP
Availability: InStock

Manufacturer: Evergush

Be the first to review this product

Fire-fighting Pump Set

SKU: FF80-XA3220-27.5

Vendor: Premier Screwking Bolts & Nuts Corp.

Choose Variation *

FF80-XA3220-27.5 (without jockey pump) [+₱235,000.00]
FF80-XA3220-27.5 (with jockey pump ECDL2-5) [+₱335,000.00]
FF100-XA5016-2-11 (without jockey pump) [+₱320,000.00]
FF100-XA5016-2-11 (with jockey pump) [+₱420,000.00]

₱5.00

Qty:

i h

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

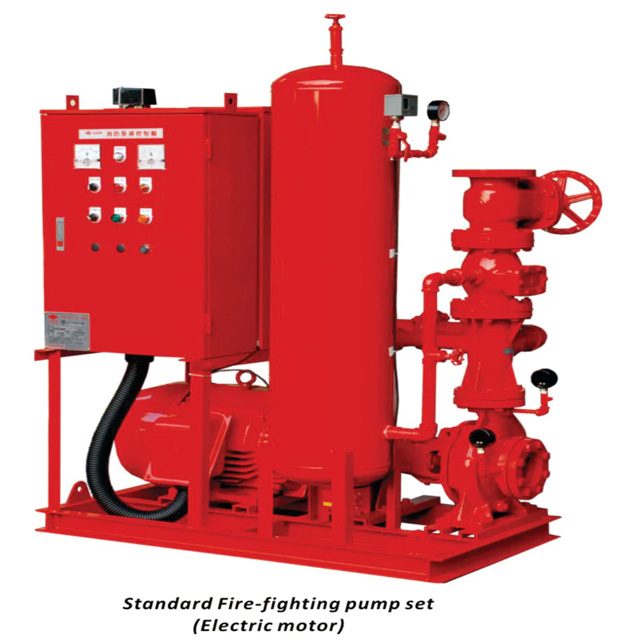

Fire-Fighting Pump Set
FF-Series (60Hz)

Applications

Water supply and auto boost water pressure to the fire sprinkler system, fire hydrant, fire foam system of the buildings, malls, hotels, factories, stadium, parking area, stations, airports, schools.

Model	Without Jockey Pump		With Jockey Pump
Model	FF80-XA3220-27.5	FF100-XA5016-211	FF100-XA5016-211
Rated Q:	13m3/hr	46m3/hr	46m3/hr
Rated H:	61 meters	45 meters	45 meters
Driven Electric Motor:	3 Phase/ 220V~60Hz 3500 rpm / 7.5KW (10HP)	3 Phase/ 220V~60Hz 3500 rpm / 11KW (15HP)	3 Phase/ 220V~60Hz 3500 rpm / 11KW (15HP)
Suction Pipe:	80mm (3")	100mm (4")	100mm (4")
Discharge Pipe:	80mm (3")	100mm (4")	100mm (4")

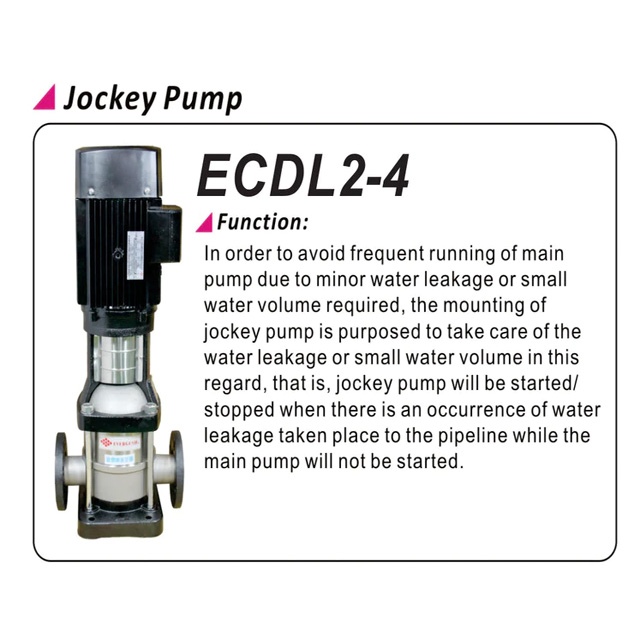

Jockey Pump Function & Specifications

In order to avoid frequent running of main pump due to minor water leakage or small water volume required, the mounting of jockey pump is purposed to take care of the leakage or small water volume in this regard. Jockey Pump will be started/stopped when there is an occurrence of water leakage taken place to the pipeline while the main pump will not be started.

Model	ECDL2-4
Rated Q:	4m3/hr
Rated H:	22 meters
Driven Electric Motor:	3 Phase/ 220V~60Hz 3500 rpm / 1.1 kW (1.5HP)
Suction Pipe:	40mm (1.5")
Discharge Pipe:	40mm (1.5")
