FEATURES:
- Auto boost water pressure when water is consumed; stop running automatically when water is not consumed.
- Pre-pressure one-piece forming diaphram pressure tank with good apperance and corrosive resistant.
- Install overload protector in motor's circuit and thermal shutoff device on pump front cover protect motor from burnout due to abnormal conditions.
- Applications:
- Water supply for residential and commersial applications.
- Water pressure boosting for barber shops, restaurants, sprinkle systems, washing machines, apartments, etc.
SPECIFICATIONS:

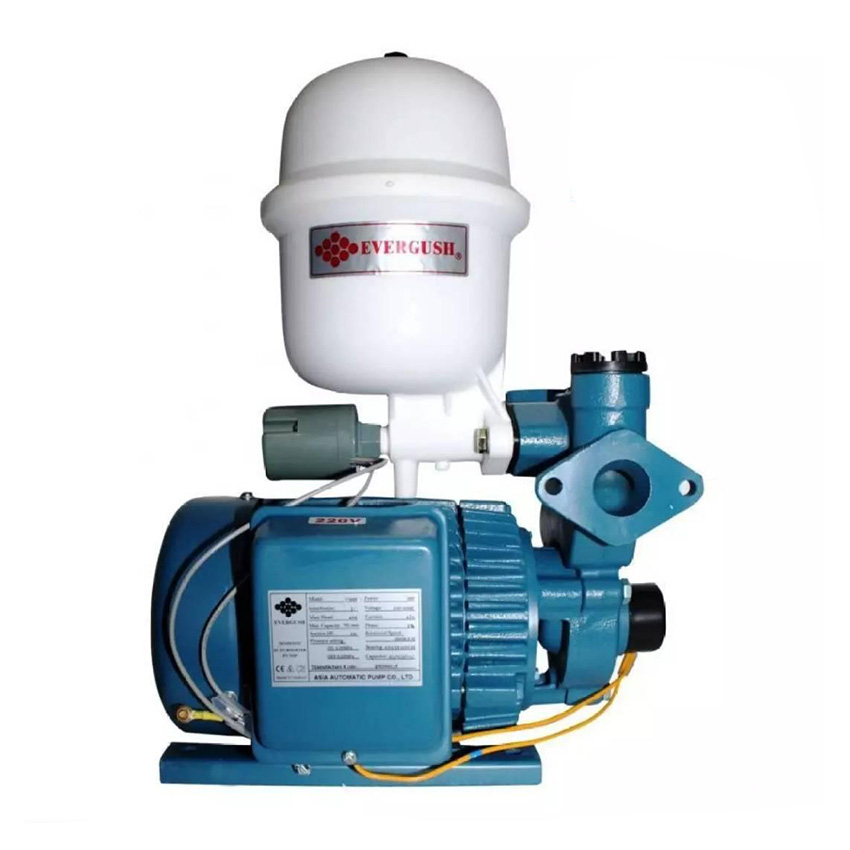

Model: V760H
Frequency (Hz): 60
Power (HP): 1
PH (Ø): 1
Voltage (V): 220
Inlet (in.): 1"
Outlet (in.): 1"
Pressure Setting On (Kg/cm²): 2.0
Pressure Setting Off (Kg/cm²): 3.2
Max. Head (m): 45
Max. Flow (L/min.): 70
Net Weight (Kg): 21.4
