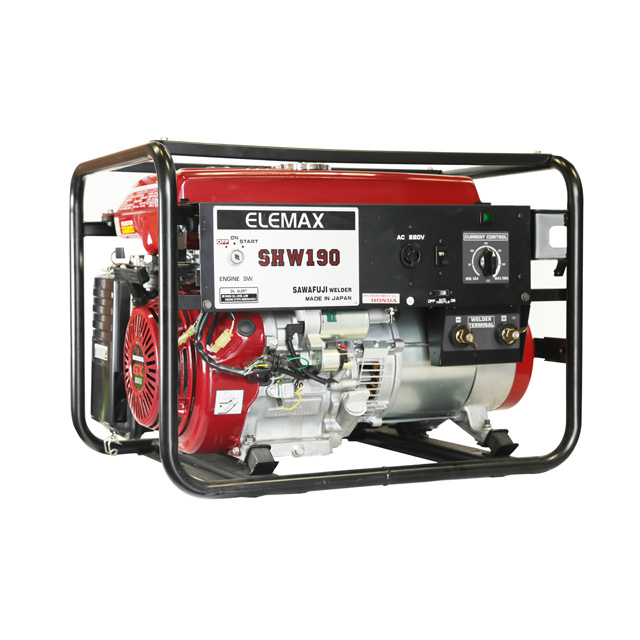

ELEMAX Welder Generator - SHW190

Manufacturer: Elemax
Welder Generator
*
₱1.00
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

FEATURES

-Honda OHV 4-stroke Engine

-190amps Maximum DC Power for Welding

-17 liter Large Capacity Fuel Tank with Fuel Gauge

-Compact and Light Weight

-Stable-Arc 6-Phase Half Wave Current for Welding

ModelSHW190
Type RSL
GeneratorFrequency (Hz)5060
Type2-pole, Field Rotating Type
PhaseSingle
AC OutputRated Power
(KVA)
50Hz2.0--
60Hz-3.04.0
Rated Voltage (V)220110
Rated Power Factor (cosφ)1.0
Welder(DC)Type2-pole, Field Rotating Type
Rectifier TypeSix Phase Half Wave Rectifier
Rated Output3,600rpm140A 26V
Current Control Range (A)50 - 190
Rated Duty Cycle (%)50
Welding Rod2.6 to 5.0 mm dia.
EngineMakerHONDA
ModelGX390
Displacement (CC)389
Net Power (kW)3,600rpm8.7
Ignition SystemTransistor
Oil Alert SystemYES
Starting SystemRecoil (OP;Electric)
OthersL x W x H (mm)679 x 511 x 490
Dry Weight (kg)88
Fuel Tank Capacity
(liters)
17
Sound Level
[dB(A)/7m]
50Hz73
60Hz75
Continuous Operating Hours (hr)50Hz6.2
60Hz5.2
