ELEMAX Generators - SHX SERIES

Name: ELEMAX Generators - SHX SERIES
SKU: SHX SERIES
Price: 1.00 PHP
Availability: InStock

Manufacturer: Elemax

Generators

SKU: SHX SERIES

Choose Variation *

₱1.00

Qty:

i h

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

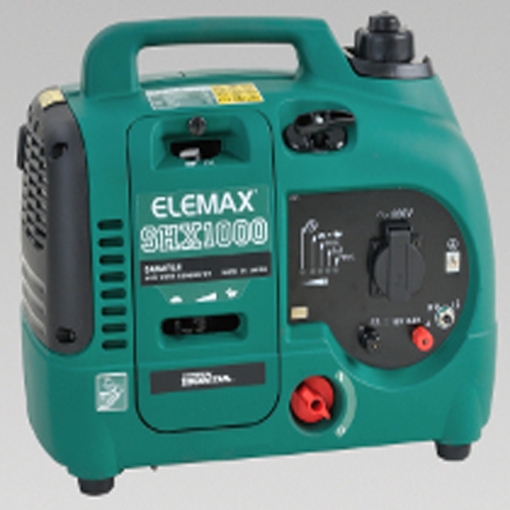

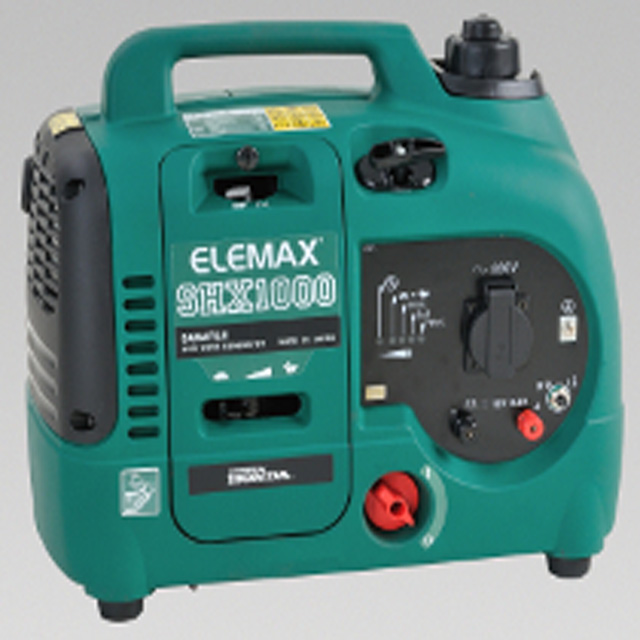

Models			SHX1000-S
Type			R	G	S	L
Generator	Frequency (Hz)		50		60
	Engine Speed (rpm)		5800/4100(Power Mode/Silent Mode)
	Waveform		Square-Wave
	AC Output	Maximum Power (W)	1000
		Rated Power (W)	900
		Rated Voltage (V)	220	230	220	120
	DC Output		Only for Charging 12V Automotive Batteries.
			Maximum Charging Output = 8.3/4.2A (Power Mode/Silent Mode)
	Insulation Class		B
Engine	Maker		HONDA
	Model		GXH50
	Type		Air Cooled OHV 4-stroke Gasoline
	Displacement (CC)		49.4
Others	L x W x H (mm)		465 x 265 x 380
	Dry Weight (kg)		13.6	14.0	13.6	13.6
	Fuel Tank Capacity (liters)		3.8
	Sound Level	[dB(A)/7m]	58 (1/2 load)
		(dB Lwa )	89 (3/4 load)
	Pilot Lamp		LED
	Power Indicator		LED
	Oil Alert System		YES
	Engine Stop		Interlocking with Fuel Cock
	AC	Output	Plug Socket x 1			Plug Socket x 2
		Protective Device	Control Circuit
	DC	Output	Terminal
		Protective Device	Thermal Type Circuit Breaker

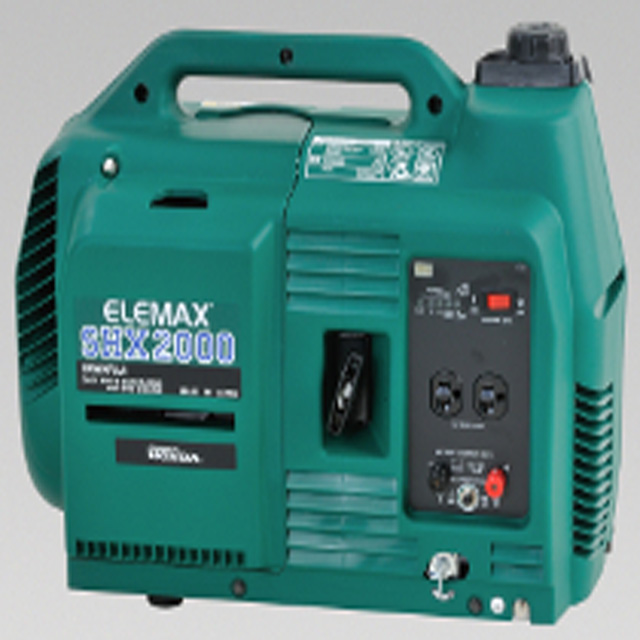

Models			SHX2000-S
Type			R	G	S	L
Generator	Frequency (Hz)		50		60
	Engine Speed (rpm)		4500
	Waveform		Square-Wave
	AC Output	Maximum Power (W)	1900	1700	1900
		Rated Power (W)	1500
		Rated Voltage (V)	220	230	220	120
	DC Output		Only for Charging 12V Automotive Batteries.
			Maximum charging output = 8.3A
	Insulation Class		B
Engine	Maker		HONDA
	Model		GX100
	Type		Air Cooled OHC 4-stroke Gasoline
	Displacement (CC)		98.5
Others	L x W x H (mm)		560 x 340 x 415
	Dry Weight (kg)		21.0	22.0	21.0	21.0
	Fuel Tank Capacity (liters)		7.7
	Sound Level	[dB(A)/7m]	63 (1/2 load)
		(dB Lwa )	93 (3/4 load)
	Pilot Lamp		LED
	Power Indicator		LED
	Oil Alert System		YES
	Engine Stop		Rocker Switch
	AC	Output	Plug Socket x 2
		Protective Device	Control Circuit
	DC	Output	Terminal
		Protective Device	Thermal Type Circuit Breaker
