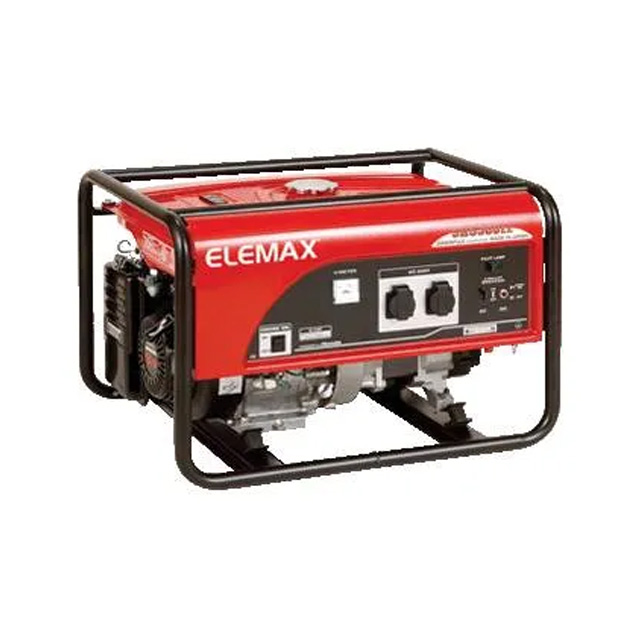

ELEMAX Generators - EX SERIES

Name: ELEMAX Generators - EX SERIES
SKU: EX SERIES
Price: 1.00 PHP
Availability: InStock

Manufacturer: Elemax

Generators

SKU: EX SERIES

Choose Variation *

₱1.00

Qty:

i h

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Models				SH3200EX-S
Type				R-type; 220V (50Hz) S-type; 220V (60Hz) D-type; 110/220V (60Hz LD-type; 120/240V (60Hz)
Generator	Frequency (Hz)			50, 60
	Type			Self-Exciting, 2-pole, Field Rotating Type
	Voltage Regulation System			AVR
	Phase			Single
	AC Output	Rated Power (KVA)	50Hz	2.2
			60Hz	2.5
		Maximum Power (KVA)	50Hz	2.6
			60Hz	3.2
		Rated Voltage (V)		220 (R,S-type), 110/220 (D-type), 120/240 (LD-type)
	DC Output (V-A)			12V-8.3A
	Rated Power Factor (cosφ)			1.0
Engine	Maker			HONDA
	Models			GX160
	Displacement (CC)			163
	Net Power (kW)		3,600rpm	3.6
	Ignition System			Transistor
	Oil Alert System			YES
	Starting System			Recoil
Others	L x W x H (mm)			623 x 435 x 491
	Dry Weight (kg)			44
	Fuel Tank Capacity (liters)			17
	Sound Level [dB(A)/7m]		50Hz	64
			60Hz	68
	Continuous Operating Hours (hr)		50Hz	14
			60Hz	12

Models				SH4600EX-S	SH5300EX-S
Type				R-type; 220V (50Hz) S-type; 220V (60Hz) D-type; 110/220V (60Hz) LD-type; 120/240V (60Hz)
Generator	Frequency (Hz)			50, 60
	Type			Self-Exciting, 2-pole, Field Rotating Type
	Voltage Regulation System			AVR
	Phase			Single
	AC Output	Rated Power (KVA)	50Hz	3.2	3.8
			60Hz	3.8	4.4
		Maximum Power (KVA)	50Hz	4.0	4.7
			60Hz	4.6	5.3
		Rated Voltage (V)		220 (R,S-type), 110/220 (D-type), 120/240 (LD-type)
	DC Output (V-A)			12V-8.3A
	Rated Power Factor (cosφ)			1.0
Engine	Maker			HONDA
	Models			GX240	GX270
	Displacement (CC)			270	270
	Net Power (kW)		3,600rpm	5.9	6.3
	Ignition System			Transistor
	Oil Alert System			YES
	Starting System			Recoil
Others	L x W x H (mm)			708 x 548 x 493
	Dry Weight (kg)			63	68
	Fuel Tank Capacity (liters)			28
	Sound Level [dB(A)/7m]		50Hz	63	70
			60Hz	71	72
	Continuous Operating Hours (hr)		50Hz	14	12
			60Hz	11	10

Models				SH6500EX-S	SH7600EX-S
Type				R-type; 220V (50Hz) S-type; 220V(60Hz) D-type; 110/220V(60Hz) LD-type; 120/240V(60Hz)
Generator	Frequency (Hz)			50, 60
	Type			Self-Exciting, 2-pole, Field Rotating Type
	Voltage Regulation System			AVR
	Phase			Single
	AC Output	Rated Power (KVA)	50Hz	5.0	5.6
			60Hz	5.6	6.5
		Maximum Power (KVA)	50Hz	5.8	6.5
			60Hz	6.5	7.6
		Rated Voltage (V)		220 (R,S-type), 110/220 (D-type), 120/240 (LD-type)
	DC Output (V-A)			12V-8.3A
	Rated Power Factor (cosφ)			1.0
Engine	Maker			HONDA
	Models			GX340	GX390
	Displacement (CC)			389	389
	Net Power (kW)		3,600rpm	8.0	8.7
	Ignition System			Transistor
	Oil Alert System			YES
	Starting System			Recoil (OP; Electric)
Others	L x W x H (mm)			708 x 548 x 493
	Dry Weight (kg)			75	78
	Fuel Tank Capacity (liters)			28
	Sound Level [dB(A)/7m]		50Hz	71	73
			60Hz	75	76
	Continuous Operating Hours (hr)		50Hz	10	8.5
			60Hz	7.9	7.2
