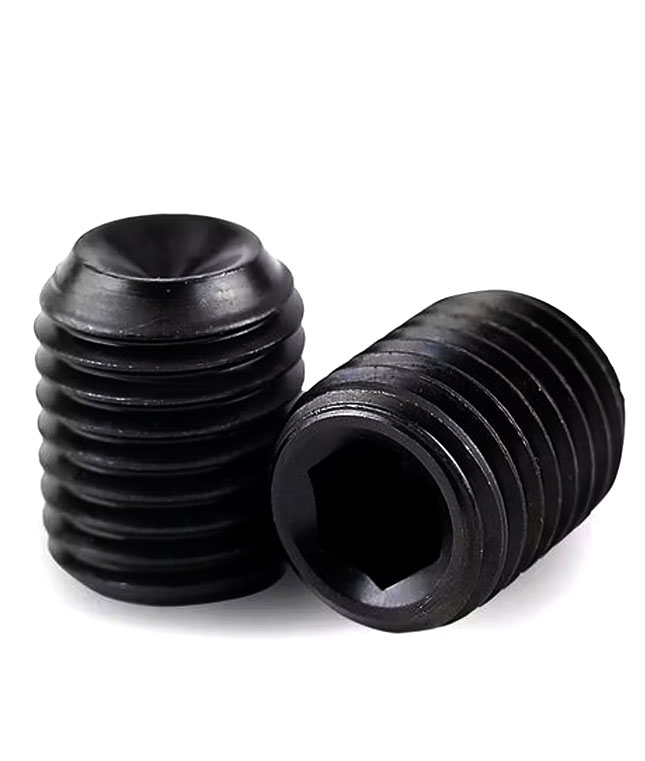

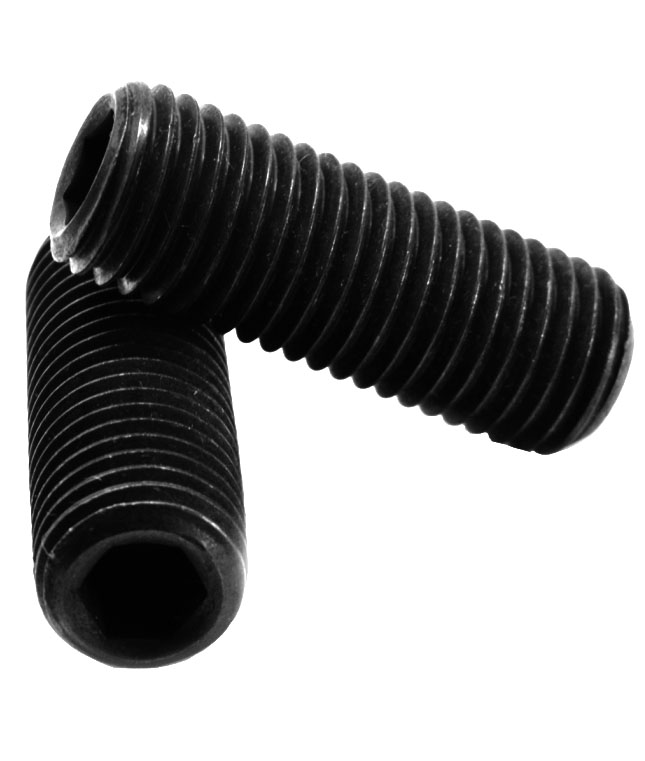

Allen socket set screw is a screw that is used to secure an object, by pressure and/or friction, within or against another object, such as fixing a pulley or gear to a shaft. A set screw is normally used without a nut (which distinguishes it from a bolt), being screwed instead in a threaded hole drilled in only one of the two objects to be secured. A set screw is often headless and threaded along its entire length, so that it will sit entirely inside that hole; in which case it may be called a grub screw or blind screw.

Diameter Sizes : M1.6, M2, M2.5, M3, M4, M5, M6, M8, M10, M12

Pitch : 0.35, 0.4, 0.45, 0.5, 0.7, 0.8, 1, 1.25, 1.5, 2.0, 2.5

Length : 2MM to 100MM

REMARKS: This item is open for a large volume of sales. For request of distribution email CLICK HERE.
