FEATURES:

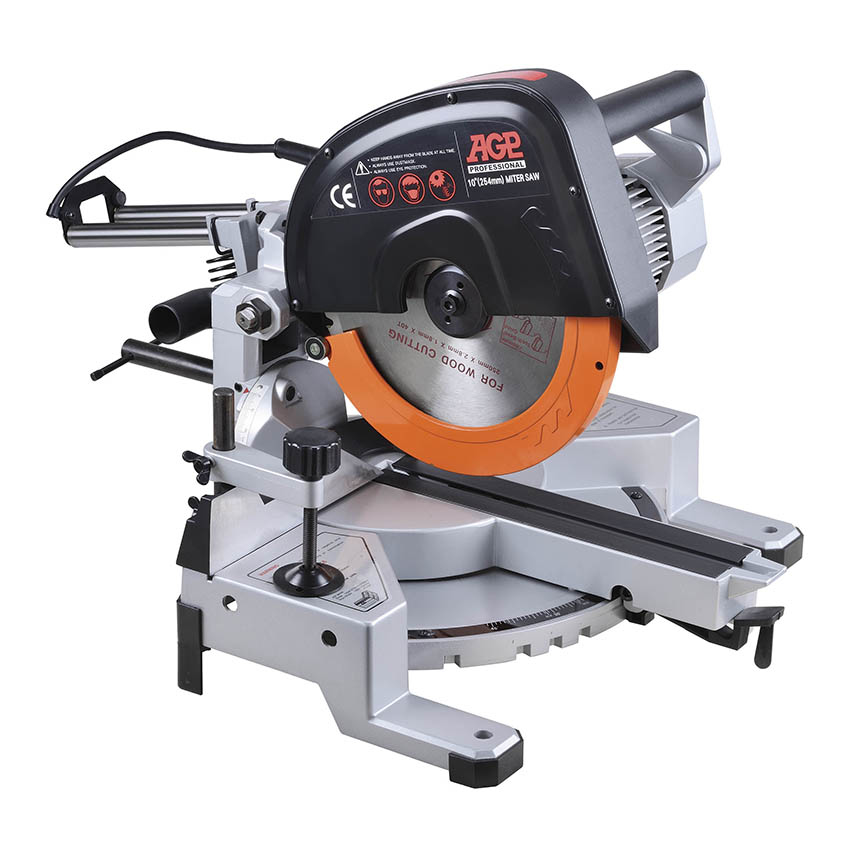

- 10" Miter Saw for cutting materials up to 60 mm x 100 mm
- The AC induction motor offers longer service life, more stable speed, and quieter operation.
- Our saws provide 9 positive stops for all the most popular miter angles with fast and easy bevel adjustment.
- Ideal for quick and easy cutting of hardwoods, veneer, fiberboard, and plastic, as well as aluminum sash and siding.
- The optional Mechanical Motor Brake gives solid, reliable stopping within 2-3 seconds. This is much quicker and durable than unreliable electronic motor brakes.
SPECIFICATIONS:
| Model | GP255 |
|---|
| Voltage | 110-120V~ 50-60Hz, 220-240V~ 50-60Hz |
|---|
| No Load Min-1 | 3000 (50Hz), 3600 (60Hz) |
|---|
| Bevels | 0 to 45 Degrees |
|---|
| Miters | 0 to 45 Degrees Left and Right |
|---|
| Blade | 254 mm (10 in.) |
|---|
| Arbor | 30mm (1-3/16 in.) or 25.4mm (1 in.) |
|---|
| Base Dimensions | 460 X 450mm |
|---|
| Cutting Capacities | 90 Degree Miter: 100 mm x 60mm (4 X 2-3/8 ") |
|---|
| 45 Degree Miter: 76 mm x 60mm (3 X 2-3/8 ") |
| Dimensions (LxWxH) | 564mm x 490mm x 505mm |
|---|
| Net Weight | 18.5 kg (40.79 Lbs) |
|---|
Standard Accessories: TCT Saw Blade, Vise Set, Motor Brake, Vacuum Port
M10 Open End Wrench, M12 Bevel Lock Lever, M24/27 Open-End Wrench,
Hex Head Screw x2pcs, Flat Washer x1pc, Plastic Head Screw x1pc
