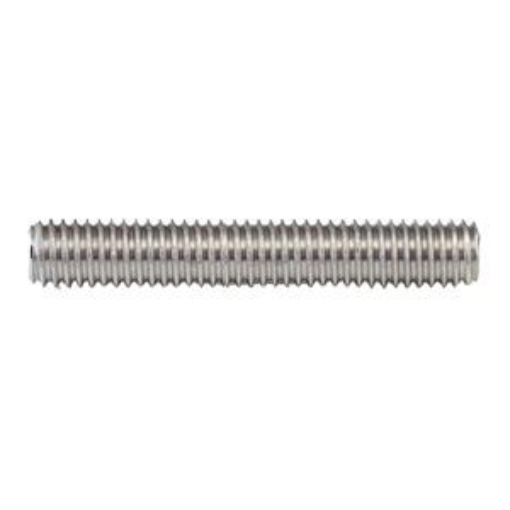

304 Stainless Steel Stud Bolts Inches Size 3/8 1/2 5/8 3/4, SSSB

Name: 304 Stainless Steel Stud Bolts Inches Size 3/8 1/2 5/8 3/4, SSSB
SKU: SSSB
Price: 30.69 PHP
Availability: InStock

Manufacturer: Screwking

Be the first to review this product

304 Stainless Steel Stud Bolts Inches Size

SKU: SSSB

Vendor: Premier Screwking Bolts & Nuts Corp.

Choose size x length *

Availability: In stock

₱30.69

Qty:

i h

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Delivery date: 3-5 days

FEATURES: Stud bolt, nuts, machine bolts and washers are also known as bolting material or fastener. Bolting is the term that used to tighten / create the flange joints connection.

SPECIFICATIONS:

DESIGN TEMP.	FLANGES	GRADE THREAD RODS	GRADE NUTS
-195° to 102°C	ASTM A182 Gr. F304, F304L, F316, F316L, F321, F347	A320 Gr.B8 Class2	A194 Gr.8A
-101° to -47°C	ASTM A350 Gr.LF3	A320 Gr.L7	A194 Gr.7
-46° to -30°C	ASTM A350 Gr.LF2	A320 Gr.L7	A194 Gr.7
-29° to 427°C	ASTM A105	A193 Gr.B7	A194 Gr.2H
428° to 537°C	ASTM A182 Gr.F11, F22	A193 Gr.B16	A194 Gr.2H
538° to 648°C	ASTM A182 Gr.F11, F22	A193 Gr.B8 Class1	A194 Gr.8A
649° to 815°C	ASTM A182 Gr. F304H, F316H	A193 Gr.B8 Class1	A194 Gr.8A
DESIGN TEMP.	FLG'S	GRADE THREAD RODS	GRADE NUTS
